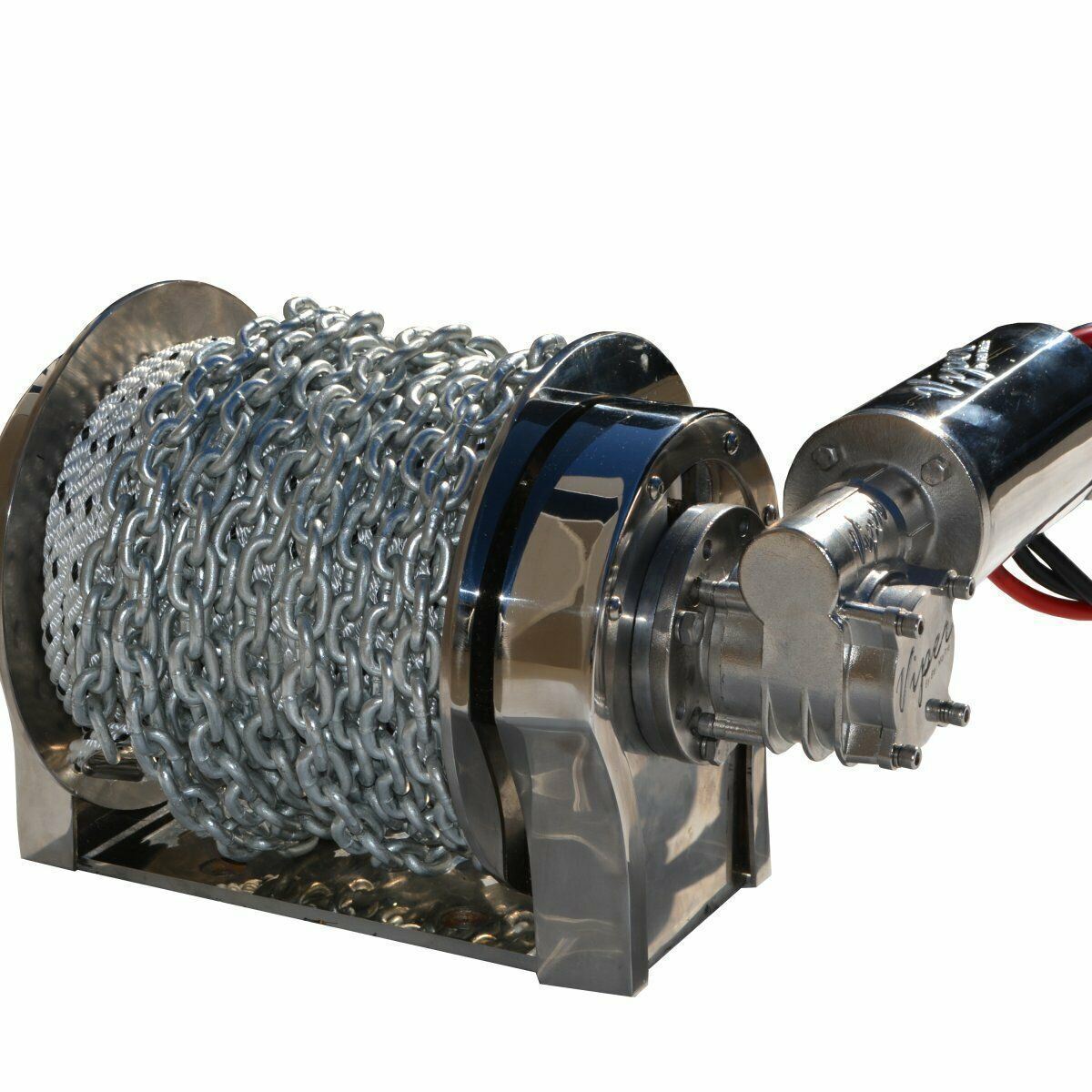

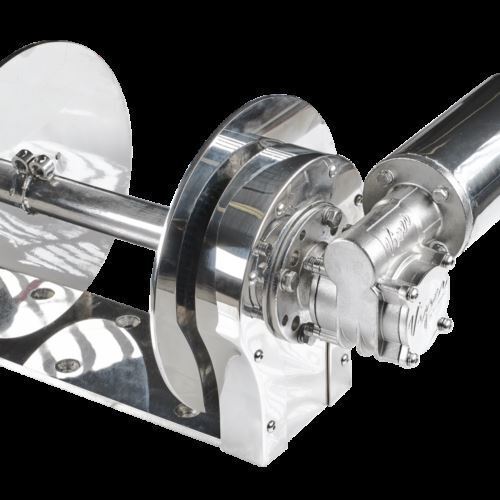

BELL MARINE VIPER “S” SERIES GRAVITY FEED 1000W STAINLESS WINCH BUNDLE 30072-6S
BELL MARINE VIPER “S” SERIES GRAVITY FEED 1000W STAINLESS WINCH BUNDLE 30072-6S
The New Viper GRAVITY FEED S Series Free fall Winch (patent pending) was developed by Bell Marine after 3 years of R&D and 2 years of field testing. The Viper Gravity Feed has now proven itself to be a serious contender in the high performance anchoring arena. Our home grown mechanical free fall gives you the peace of mind, reliability, and performance not found in free spooling winches. The all-new all-stainless steel Gravity Feed was designed without any additional electronics, wiring or solenoids that can be the downfall in harsh boating environments.
The new drop speed will ensure your anchor hits the bottom exactly where you want it, when you want it.
At the touch of a switch, the Viper Gravity Feed winch controls the drop speed to ensure no over spooling (can be set to match the size of your anchor), yet giving you ultimate speed and allowing you to get on to your GPS mark, FIRST TIME, EVERY TIME !!
If you are anchoring in deep water and/or require high performance anchoring, the new Gravity Feed winch is the one for you – its quiet and efficient operation also conserves your battery and runs at up to 4x faster than some drum winches using our mechanical patented design.
————————————————————————————————————–
90mtrs of 6mm Double Braid Rope with 8mtrs of 6mm Short Link Chain (Total of 98mtrs Rope/Chain)
With a bullet proof 5-year Viper performance warranty, you can’t go past a Viper. Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.
All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms, you will never have to break your back pulling up your anchor and chain again!
Please note: 3B&S cables are already attached to our motor and leak tested, so there is no need to remove end caps that are not sealed properly!
INSIST ON A NEW “S” SERIES GRAVITY FEED ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!
- 1000W Submersible Stainless Steel Electric Motor with IP68 Certification
- 28mm Solid S/S Shaft With 3 Support Bearings
- 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish

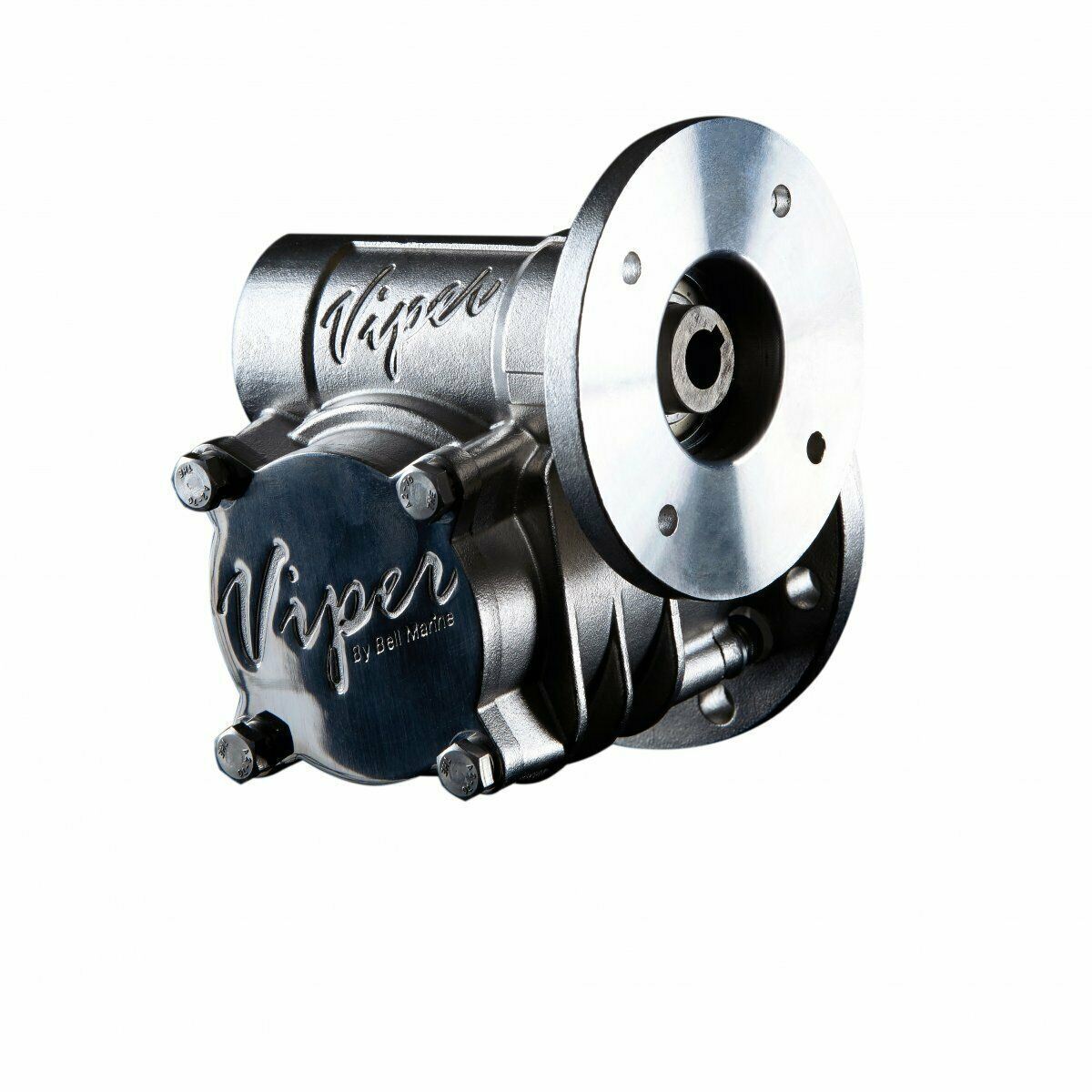

- Viper 316 Stainless Steel Marine Worm Drive Gear Box
- 360 Degree Motor Rotation with 16 Different Positions
- Max fall rate: 138mtrs per minute
- Max Retrieval rate: 45 mtrs per minute
- Suit Vessel Length: 5.7 mtrs +
- Weight: 23 kgs (winch only)
- Well Clearance Required: Width 435mm x depth 365mm x height 266mm
- 30021 - Viper "S" Series Gravity Feed 1000 all stainless steel submersible anchor winch supplied with 1 mtr 3 b&s power leads & joining connectors pressure tested & sealed
- 30032 - 90MTRS of 6MM double braid rope spliced to 8MTRS of 6MM galvanised short link anchor chain
- 30001 - Viper pro series anchor swivel - small
- 30009 - Viper deluxe anchor roller - small
- 30020 - 200amp reversing solenoid
- 90109 - ELITE series stainless steel up/down switches
- 30046 - 100 amp flush mount circuit breaker with rubber seal
- 5mm stainless steel sandwich plate
- All fixing hardware
- Installation notes & wiring diagram
ROPE KIT: 27 X 27 X 25 CM 9KG
