THE ALL NEW, ALL STAINLESS STEEL “S” SERIES VIPER WINCH IS SHIPPING!
“The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia”

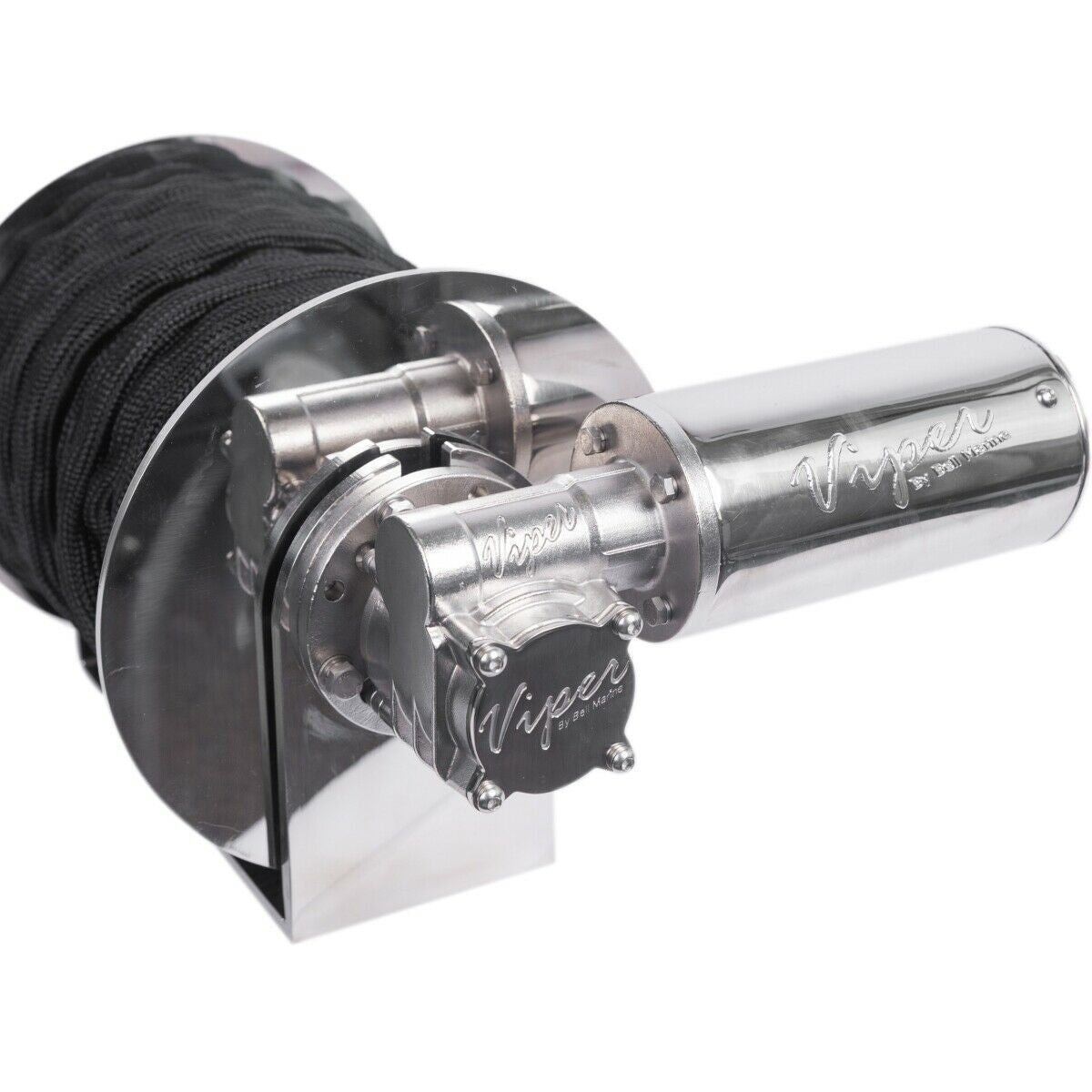

The Viper “S” Series RAPID has set new standards in anchoring systems. The new Viper 1000W electric motor (hand polished marine 316 grade stainless steel) coupled with our stainless steel marine gearbox has made it one of best selling anchor winch in Australia. With a fall rate of over 50 meters per minute and a retrieval rate of 45 meters per minute the Viper will ensure you get onto your GPS mark, first time, every time!
With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 28mm one (1) piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. With a life time warranty against water intrusion, and a bullet proof 5-year Viper performance warranty, you can’t go past a Viper. Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.
All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms, you will never have to break your back pulling up your anchor and chain again!
Including 200mtrs HiSpec UHMWPE Rope, Pre-Spliced to a 10mtr 8mm 3 Strand Shock Cord & Is Attached Via A S/S Shackle to 8mtrs of 6mm Gal Short Link Anchor Chain Kit
Please note: 3B&S cables are already attached to our motor and leak tested, so there is no need to remove end caps that are not sealed properly!
INSIST ON A NEW “S” SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!
- 28mm Solid S/S Shaft With 3 Support Bearings
- 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
- Viper 316 Stainless Steel Marine Worm Drive Gear Box
- 360 Degree Motor Rotation with 16 Different Positions
- Max fall rate: 45mtrs per minute
- Max Retrieval rate: 41 mtrs per minute
- Suit Vessel Length: 5.7 mtrs +
- Max Load: 195kgs
- Max Holding Capacity: 1900 kgs
- Weight: 15 kgs (winch only)
- Well Clearance Required: Width 395mm x depth 410mm x height 260mm
- 30021-A Alloy fitment kit for aluminium boat installations rrp $ 35.
- 30036 - 10mtrs of chain sock to suit 6mm short link chain rrp $ 39.
- 30023 - Small round hawse pipe for tricky installations rrp $139.
- 30057 - 5mm hi spec 3000 uhmwpe rope kit - 200mtrs 2050kg b/s rrp $539.
- 30006 - Single roller viper bow roller self-launching rrp $259.
- 30016 - Deluxe 3 roller viper bow roller- self launching rrp $399.
- 30034 - Custom made marine wiring loom boats upto 6mtrs rrp $259.
- 30035 - Custom made marine wiring loom boats upto 8mtrs rrp $299.
WINCH BOX: 49 X 49 X 34 CM 21KG
ROPE KIT: 25 X 25 X 25 CM 9KG
