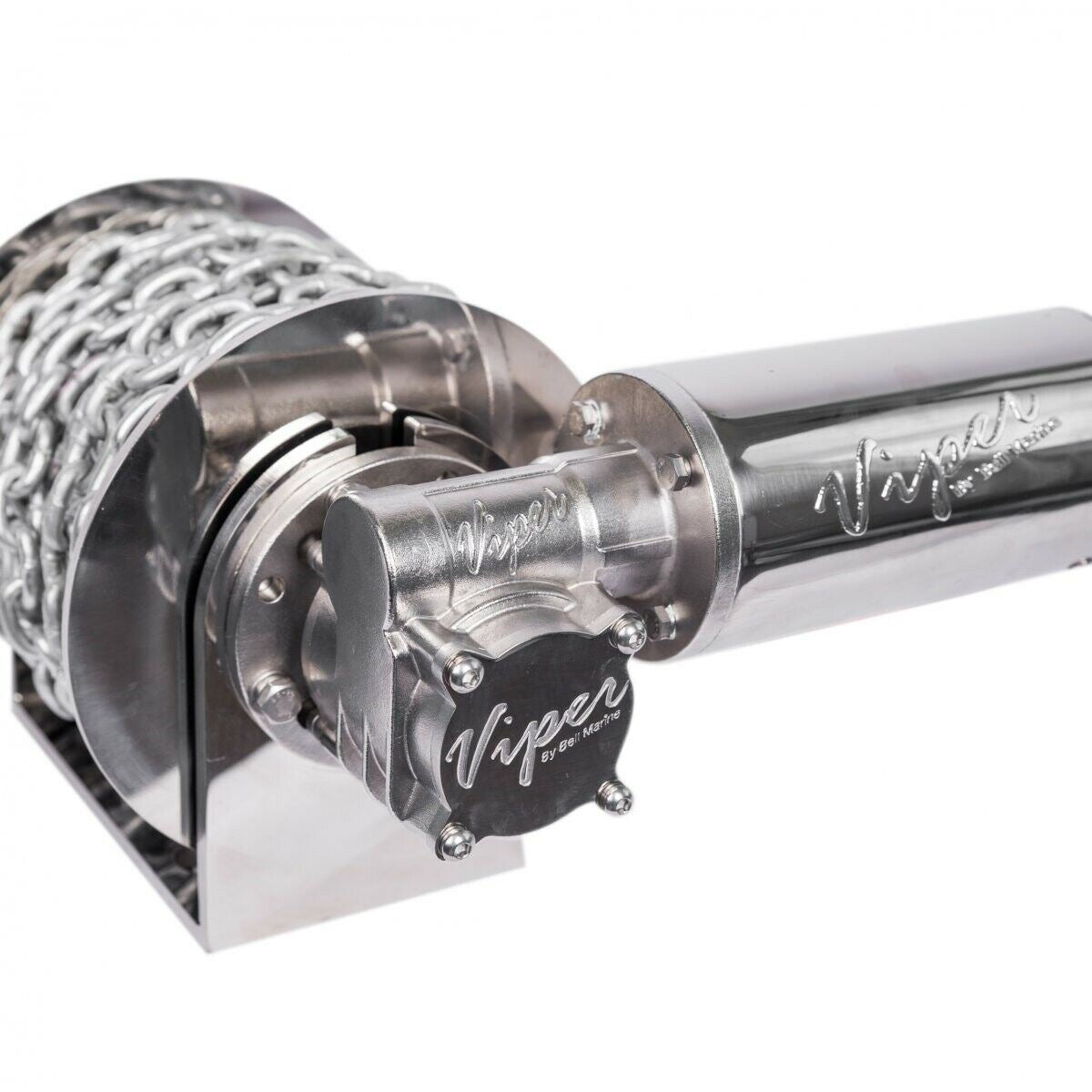

BELL MARINE VIPER S SERIES 1000W STAINLESS MICRO WINCH BUNDLE 100M ROPE 30038-4S

BELL MARINE VIPER S SERIES 1000W STAINLESS MICRO WINCH BUNDLE 100M ROPE 30038-4S

Regular price $1,686.00 AUD
Regular price Sale price $1,686.00 AUD
Sale Sold out

THE ALL NEW, ALL STAINLESS STEEL “S” SERIES VIPER WINCH IS SHIPPING!

“The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia”

Don’t be fooled by the name “MICRO” or by its size, this is one of the most powerful electric drum winch for its size and was designed to fit into bow riders, tinnies, walk-around’s, bass boats and any boat with restricted anchor well space or even none at all. When it comes to speed the Viper Micro is no sloth, it still houses the famous Viper 1000W electric motor (hand polished 316 stainless steel) and rotates its drum at speeds of up to 45mtrs per minute (fall rate) ensuring you get onto your GPS mark each and every time!

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 1 piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) & comes std with a LIFE TIME warranty against water intrusion, and a bullet proof 5 YEAR Viper performance warranty, you can’t go past a Viper.

Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.

Bundled with 100mtrs of 4mm HiSpec UHMWPE rope (1550kg braking strain) pre-spliced to a 10mtr 8mm 3 strand shock cord and attached to your chain with a stainless steel shackle ready to use!

Suits vessels from 4mtr right up to 8mtr and has no problem raising anchor sizes over 30lb or 15kgs with ease all day long!

All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!

Please note: 3B&S cables are already attached to our motor and leak tested, so there is no need to remove end caps that are not sealed properly!

INSIST ON A NEW “S” SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!

  • All New 316 Marine Grade Stainless Steel Viper Gearbox
  • 28mm Solid S/S Shaft With 3 Support Bearings
  • 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
  • 360 Degree Motor Rotation 16 Different Positions
  • 1 Mtr of 3 B&S Tinned Copper Cable Fitted & Leak tested
  • Max fall rate: 40mtrs per minute
  • Max retrieval rate: 36mtrs per minute
  • Suit vessel length: 4 mtrs +
  • Max load: 180kgs
  • Weight: 13kgs

WINCH BOX: 48 X 43 X 33 CM 19KG
ROPE KIT: 25 X 25 X 25 CM 6KG
