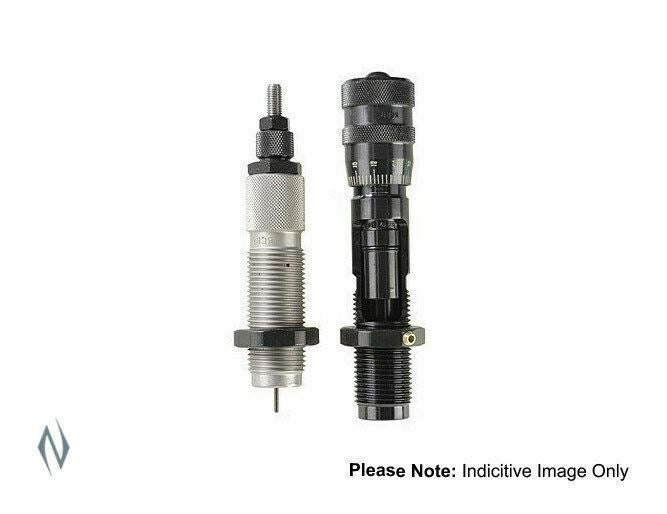

RCBS 25-06 GOLD MEDAL FULL LENGTH -B DIE SET - R12005

These die sets feature a full length sizer die that uses precision-machined neck bushings (sold separately) to size the case neck just enough provide the exact amount of bullet tension without overworking the brass.

The gold medal seater die also features a micrometre adjustment knob so that bullet depth can be precisely set and reset. The micrometre is connected to a free floating and self centering bullet seating system and has a convenient bullet loading window for easy loading.

Shellholder sold separately.

Technical Information

• Material: Polished and heat treated steel

Die Types Included:

• Full length sizer die (with expander-decapping unit)
• Seater die (with bullet seater plug)

Accessories:

• Plastic storage case

Notes:

• To determine bushing size, measure the outside neck diameter of a loaded cartridge, subtract .002" to .003" - this allows approximately .001" of brass spring back for correct neck tension.
• Another method is to measure the neck wall thickness of a case, multiply by two, add the diameter of the bullet and subtract .001" - RCBS suggests purchasing neck bushings one to two sizes above and below the target diameter.
• Gold medal seating dies may be used on progressive presses, except PPC calibers, 221 Remington Fireball, 22 Hornet.
• Gold medal match bushing dies will accept bushings made by Hornady, Redding or Wilson in addition to RCBS bushings.
