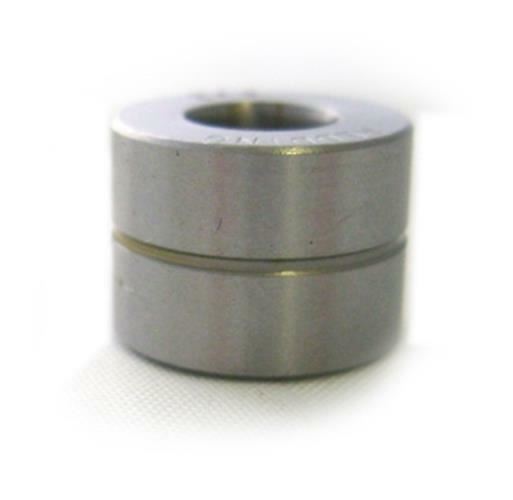

REDDING .254 HEAT-TREATED STEEL NECK SIZING BUSHING - 73254
REDDING .254 HEAT-TREATED STEEL NECK SIZING BUSHING - 73254
The easiest way to determine the proper diameter bushing is to measure the neck diameter of several loaded or dummy cartridges with an accurate micrometer. (These dummy cartridges can be loaded with your old set of dies or a borrowed set.) Then, simply subtract 0.001" from the cartridge that had the smallest average measurement. This will allow for a slight amount of spring back and create a proper press fit for the bullet. Another method of determining bushing size, is to measure the neck wall thickness of the cartridge cases with a ball type or tubing micrometer. Double this measurement and add the bullet diameter to calculate the neck diameter of a loaded cartridge. As above, subtract 0.001" from this figure to determine bushing size. This method is the least desirable of the two, as a ball micrometer is fairly expensive and more difficult to read consistently than a conventional micrometer.
