For caravans with a significant amount of canvas or 24 feet or larger, we suggest using the 5kW model.
This premium quality diesel heater kit is backed by a 24 month warranty and after sales support.

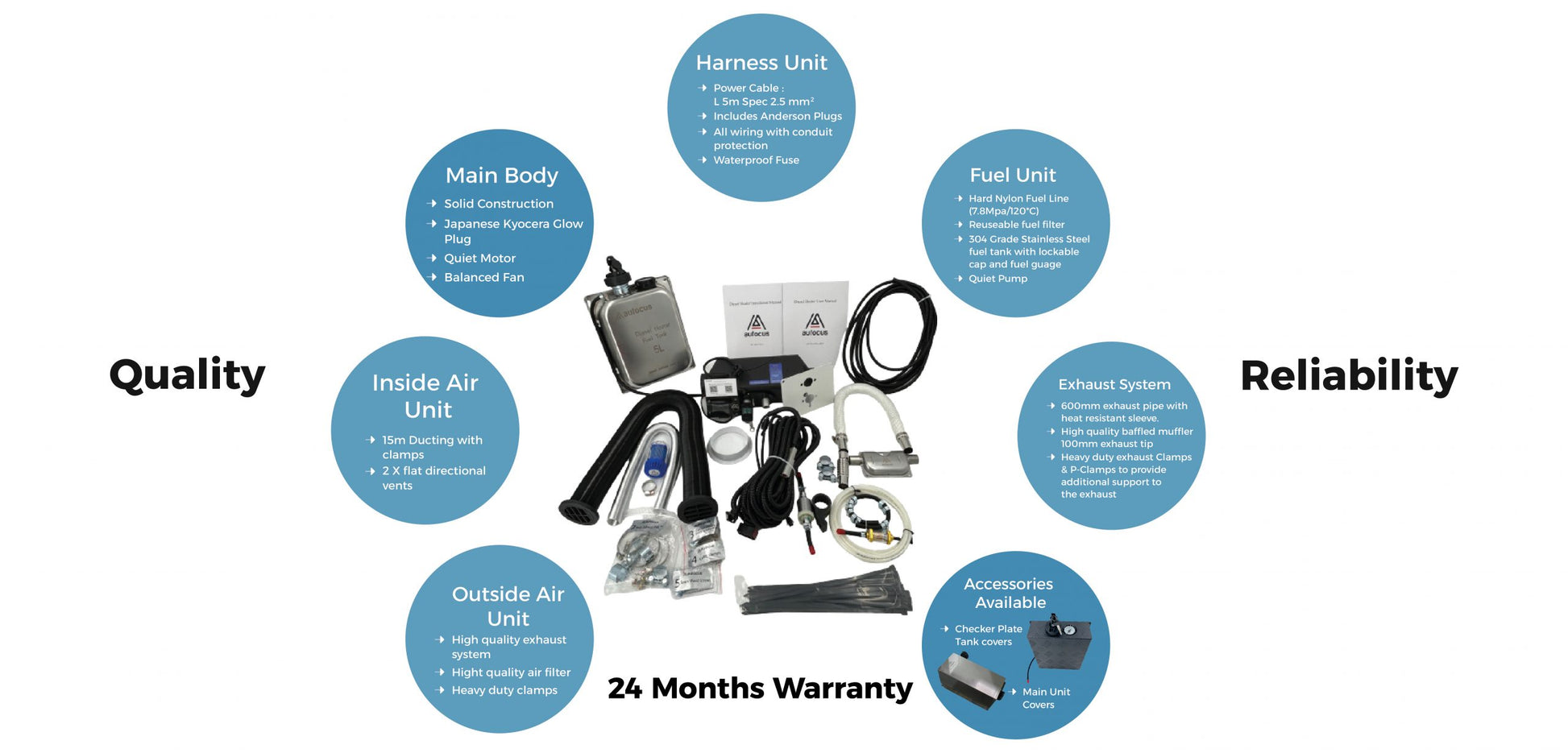

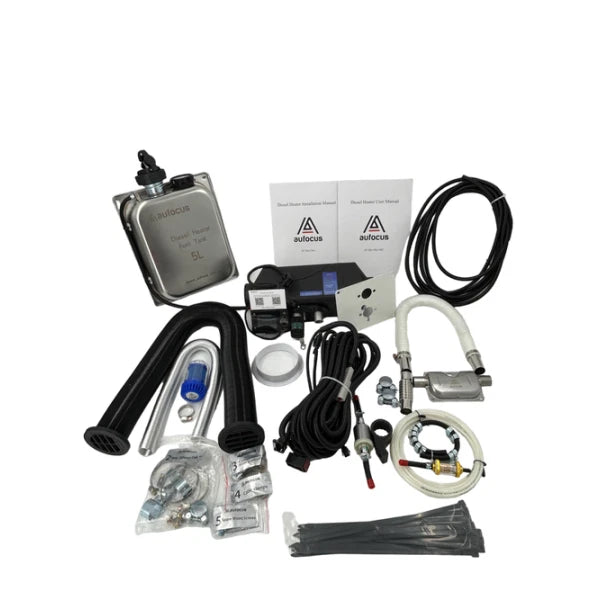

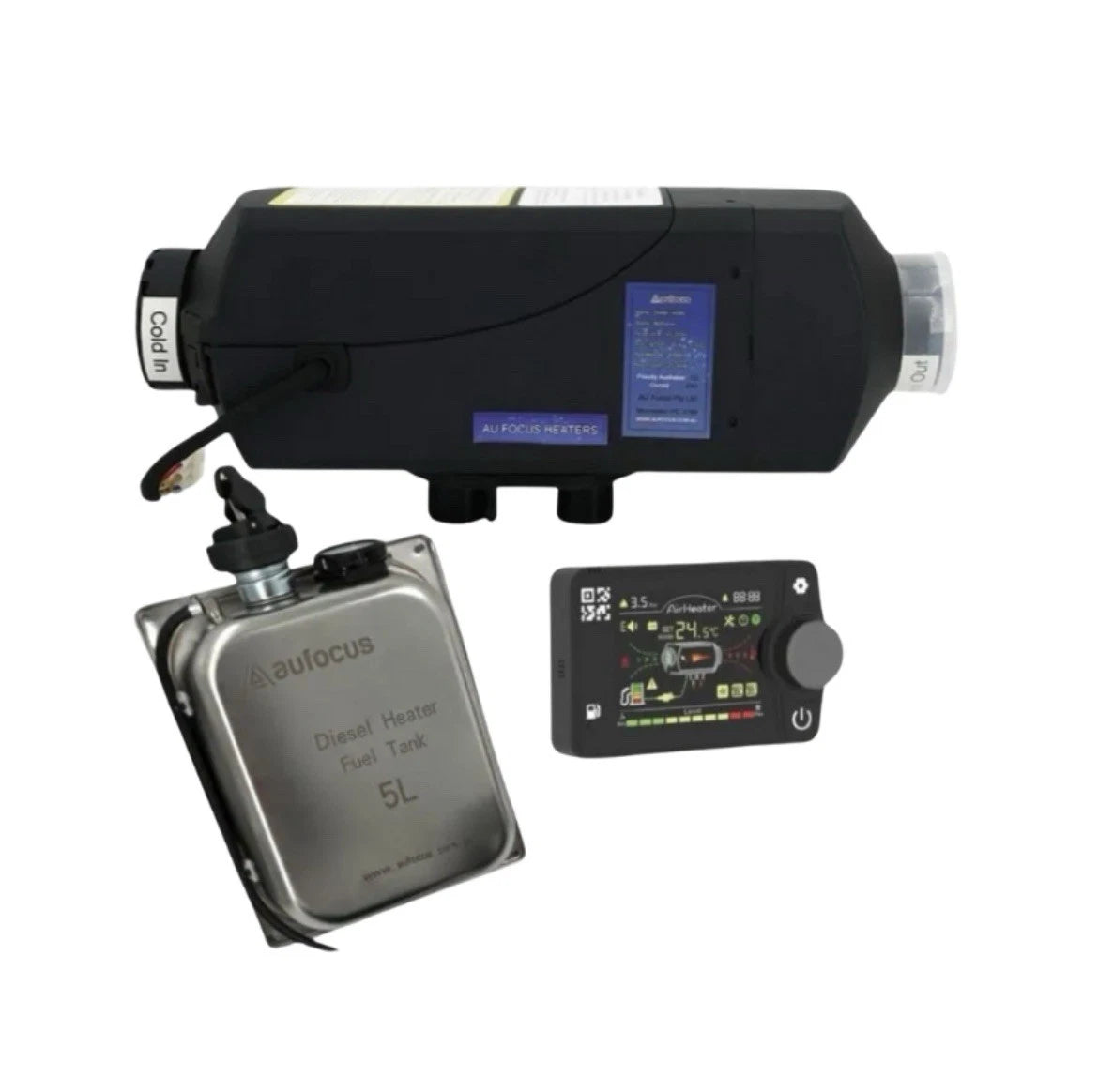

What’s Included:
Easy to follow DIY Installation manual.
Easy to read User Manual.
9.5L Stainless Steel (304 grade) Fuel Tank with top mounted dial fuel level gauge, fuel pickup and lockable fuel cap.

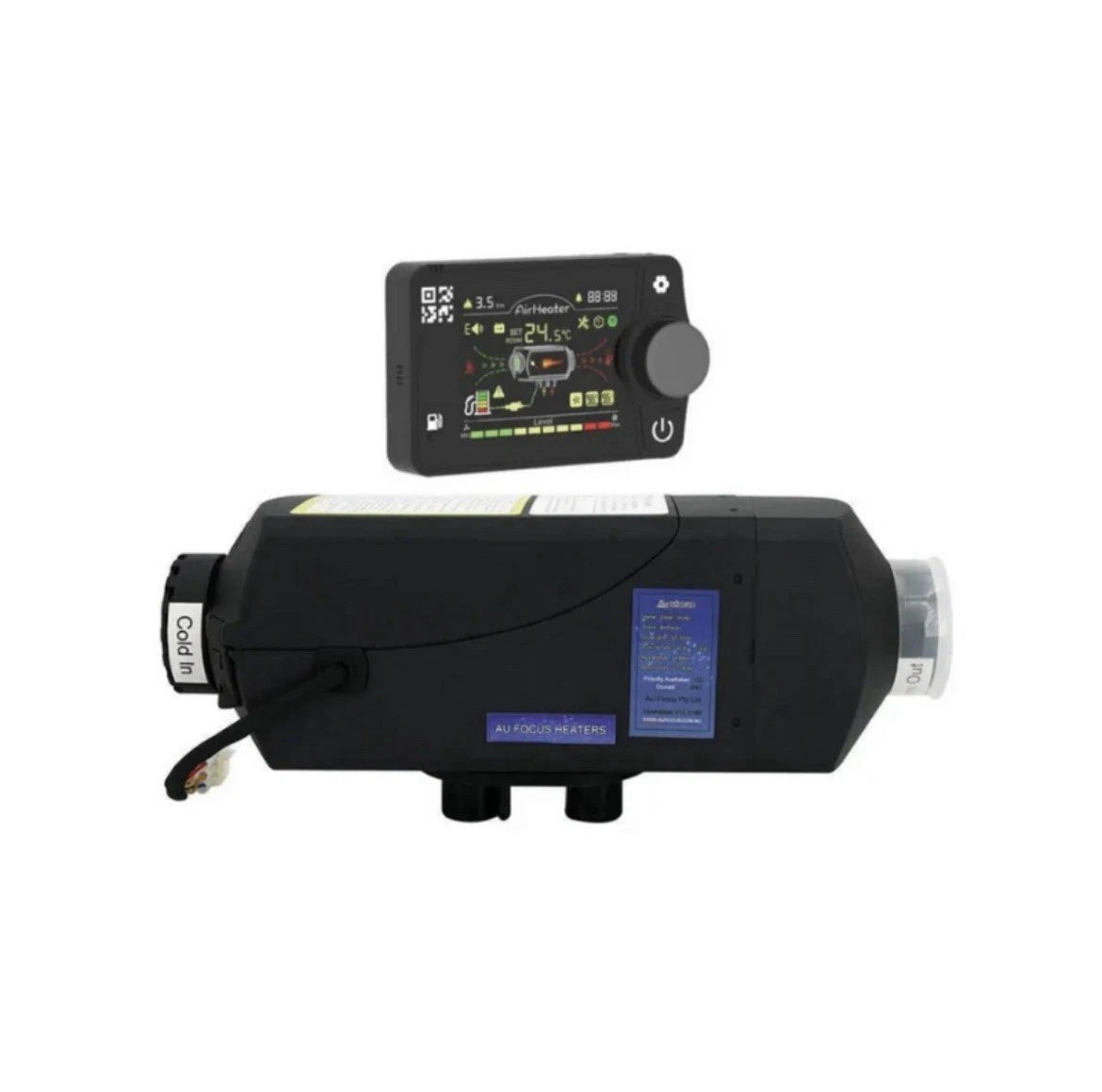

LCD panel with remote control plus easy to download app to control the heater from your mobile phone.
Solidly constructed with high grade heat resistant hard casing.

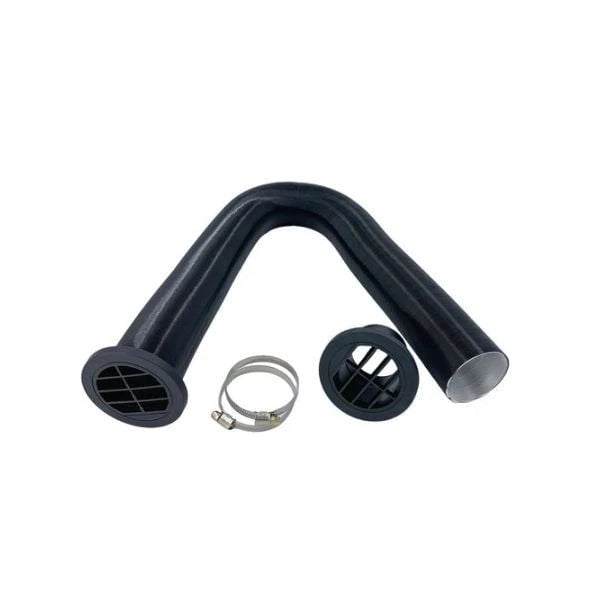

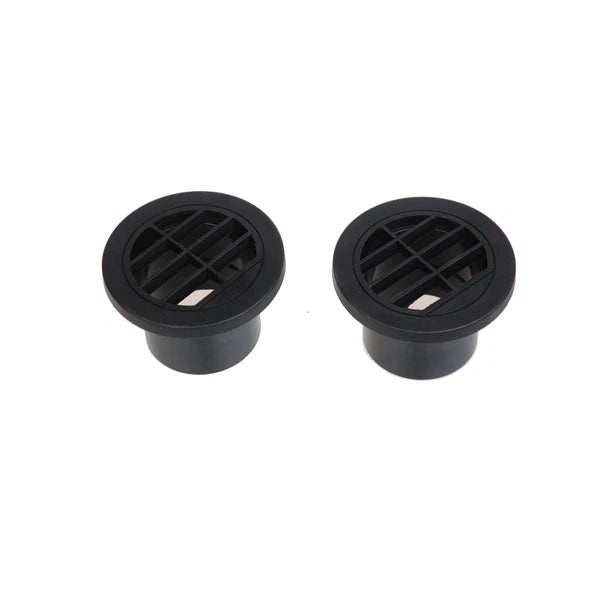

2 x Directional Flat vents.
Super quiet heavy duty fuel pump.

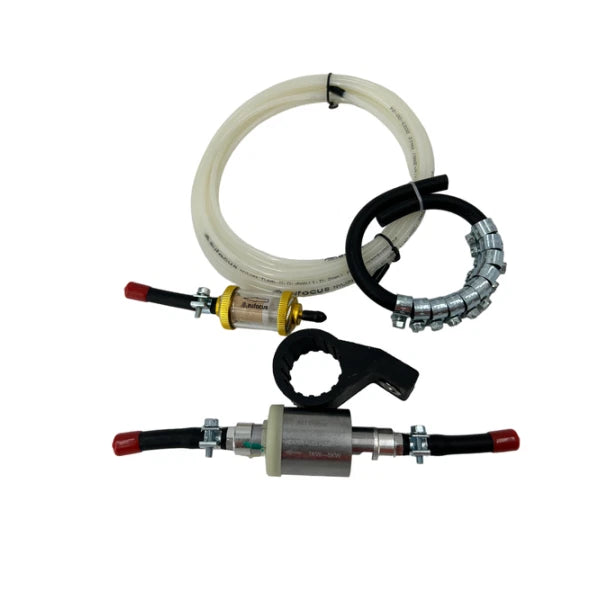

PA66 hard nylon fuel line 6m (4mm diameter, 1mm wall thickness), with black rubber connectors and heavy duty conduit.

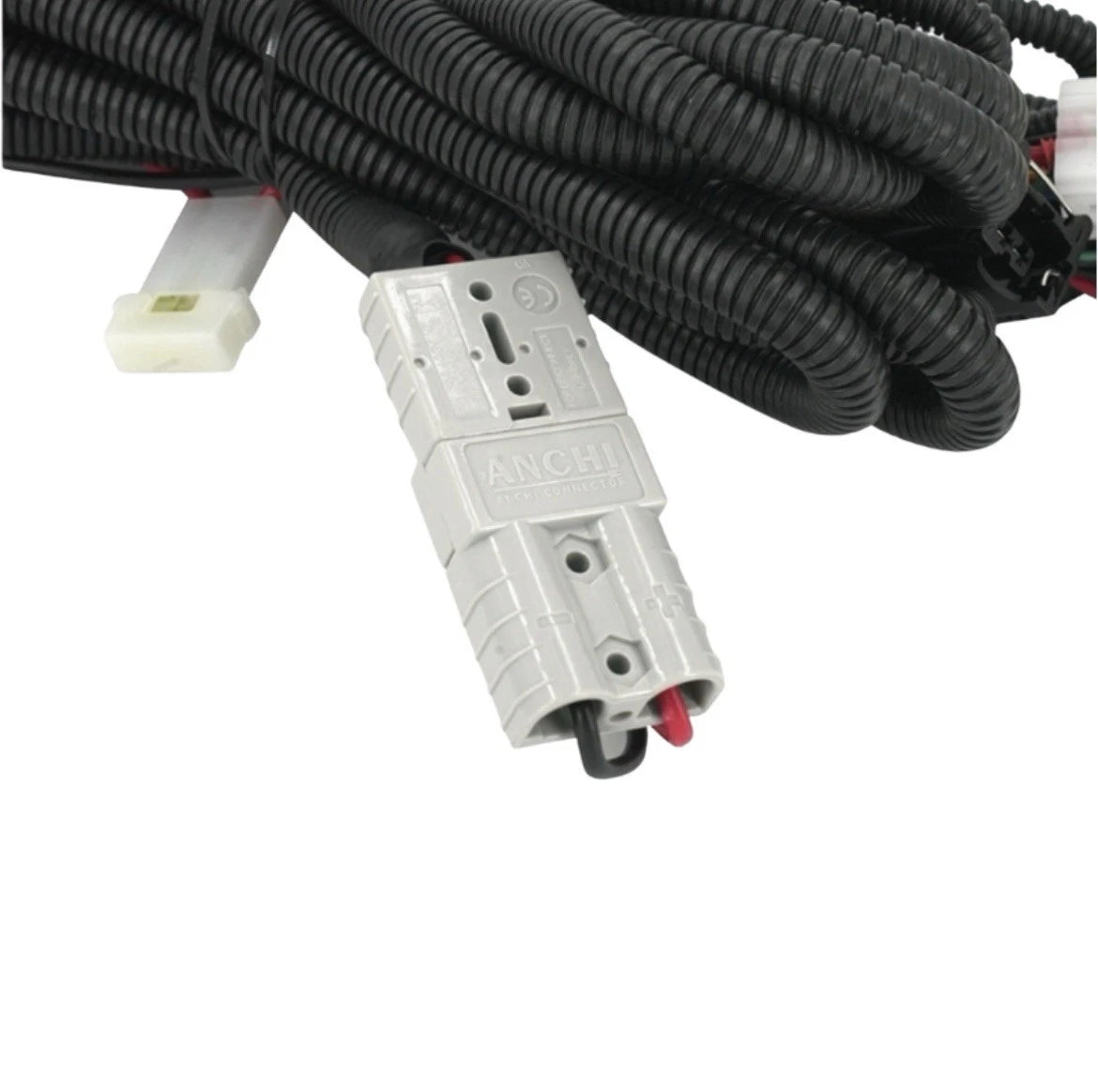

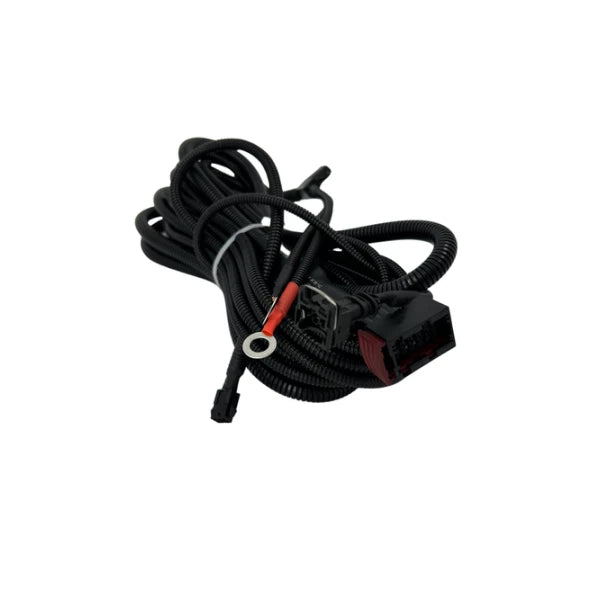

Unique design wiring harness. The wiring harness includes a 5m power cable (2.5mm core wiring), a 2.5m LCD controller cable and a 3m pump power cable. All cables are in flame retardant conduit and Anderson Plugs for easy installation (plug and play).
High Quality Air Filter.
Premium reusable fuel filter made with alloy top and base.

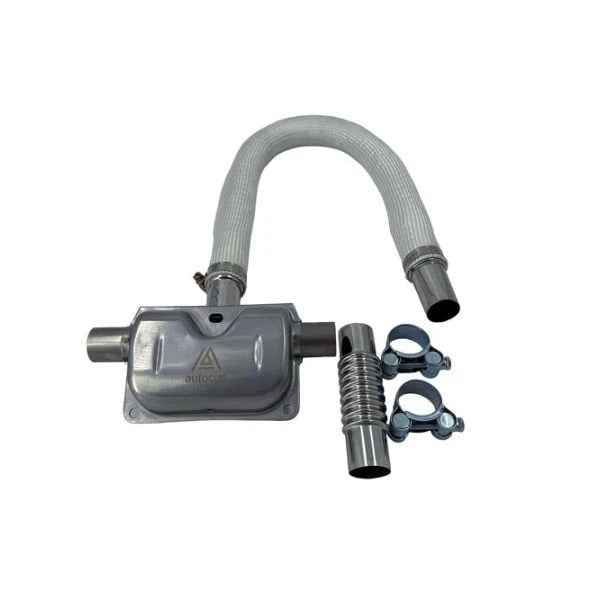

High grade exhaust with flame retardant sleeve, a heavy duty baffled muffler and exhaust tip.

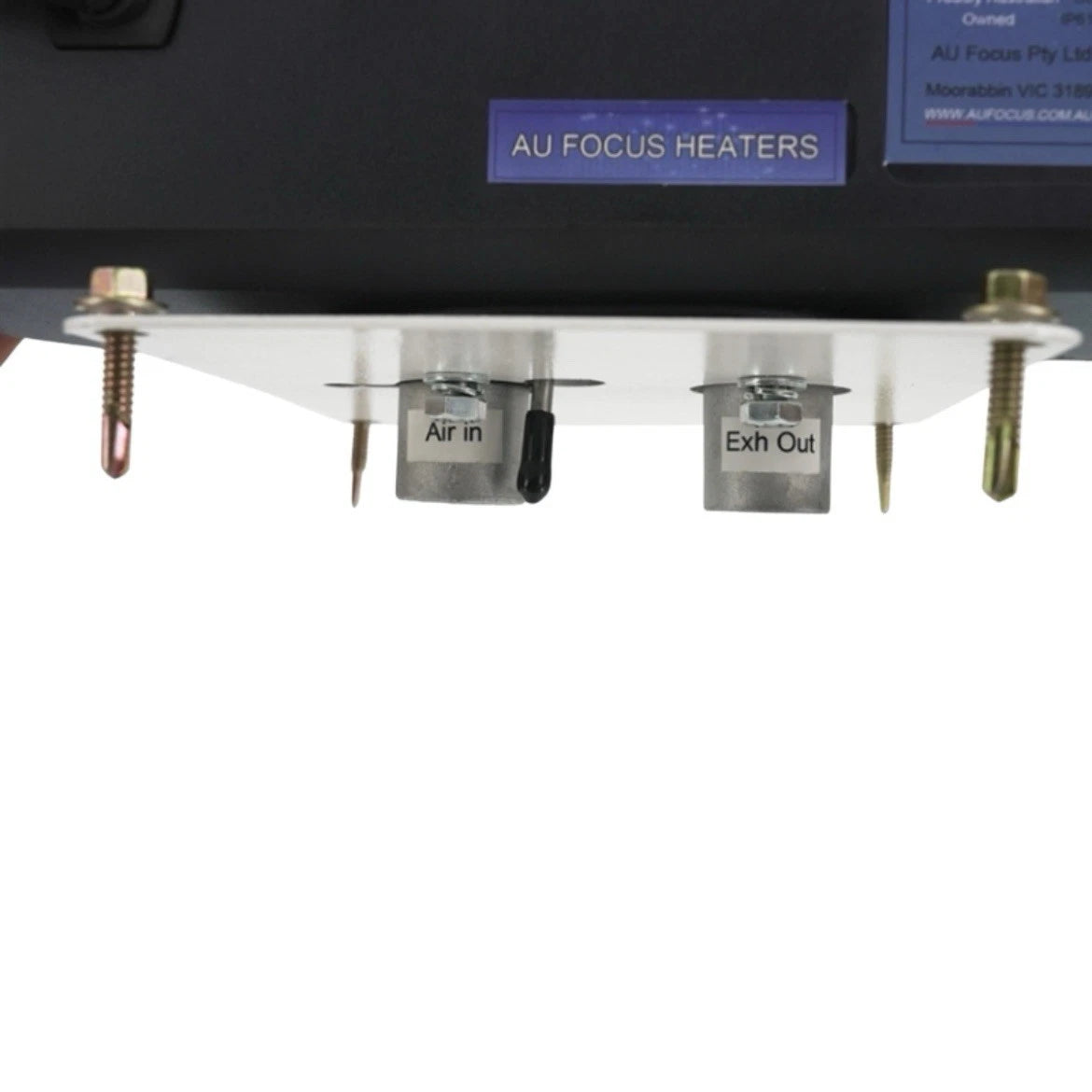

Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
Thicker durable plastic cable ties.
High quality clamps and other accessories required to complete the installation.
Features:
RCM and EMC Certification.
Three modes: 1. Fan only, 2. Manual Heat Mode 1 - 10, 3. Smart mode - The heater stops heating and burning fuel once it arrives at a set temperature. If the temperature then drops 2 degrees Celsius the heater resumes.
Compact design allowing for a space-saving installation.

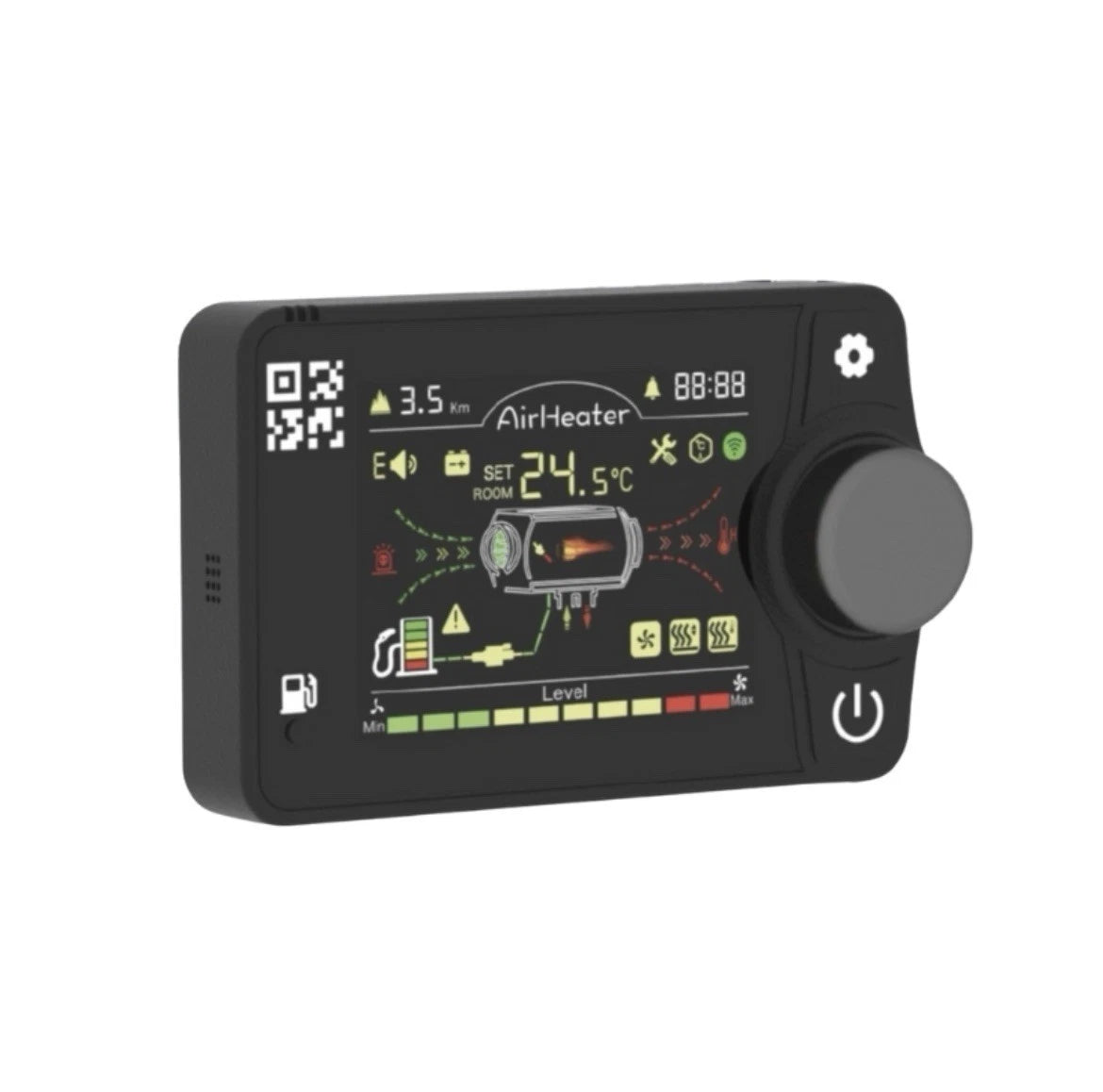

Easy to use LCD panel with remote control - Also features, Bluetooth connectivity and app to control from your phone.
Sensors on both the control board and fan for additional safety protection.
High and Low Voltage & current protection.
Fast heat up time and maintains a consistent temperature.
Auto cool down process when powered off.
Low fuel consumption.
Specifications:
Power: 1kW - 5kW adjustable
Fuel: Diesel only
Rated Voltage: DC 12V
Fuel Consumption(L/h): 0.1-0.5
Working Temperature: -400~+500
Main Unit Size: Length 390mm x Width 140mm x Height 150mm x Weight 3.8kg
Tank Size: Width 320mm x Height 353mm x Depth 110mm.
Neck & Cap Height 75mm.
Black flame retardant plastic casing (Top Grade)
LCD Control Panel - Also displays error codes for easy trouble shooting if required.
Power (5~35w/h) peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.
